Product Information
- Material: Hot-dip galvanized carbon steel Q235 or Q355
- Service life: 25 years
- Warranty: 20 years

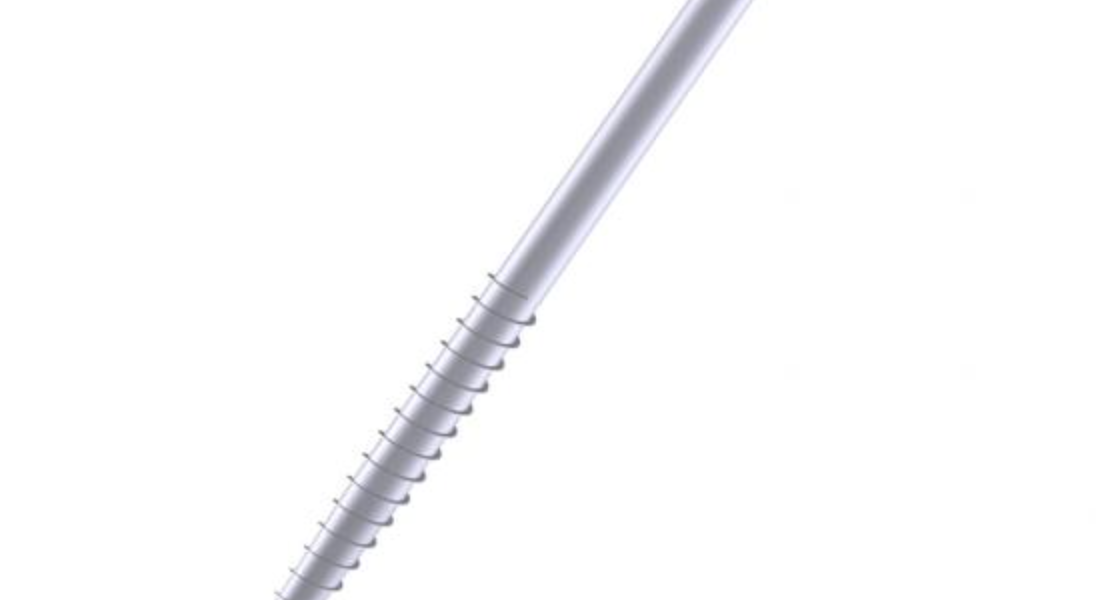

Ground Screw
Ground screw pile is a new type of pile foundation material, which has incomparable superiority advantage compared with traditional ground pile. The patented design is screwed into the ground to replace the concrete independent foundation and strip foundation.
| Advantages |
| 1、Hot-dip galvanized carbon steel Q235 2、The surface is hot-dip galvanized to ensure rust prevention and durability 3、Zinc coating thickness 70-100μm 4、The pile driver spins for about 30-75 rounds per second 5、Service life 25 years 6、20 years warrant |
|
P/N |
Length (mm) |
Min galvanized thickness (um) |
Pile tube inner diameter (mm) |
Pile tube wall thickness(mm) |
Material |
Finish |
Weight（kg） |
|
10-761235-B |
1200 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
8.98 |
|
10-761335-C |
1300 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
9.38 |
|
10-761435-C |
1400 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
10.05 |
|
10-761535-C |
1500 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
10.73 |
|
10-761640-C |
1600 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
12.52 |
|
10-761835-C |
1800 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
12.80 |
|
10-762035-C |
2000 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
14.11 |
|
10-762135-C |
2100 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
14.89 |
|
10-762235-C |
2200 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
15.57 |
|
10-762335-C |
2300 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
16.26 |
|
10-762435-C |
2400 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
16.93 |
|
10-762535-C |
2500 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
17.61 |
|
10-763030-C |
3000 |
70 |
76 |
3 (±0.25) |
Q235&Q355 |
Hot-dip galvanized |
19.27 |
Note: We offers different type of ground screw based on different installation conditions,dimension can be customized.
Packaging
|
Ground screw length |
20GP |
40HQ |
|
1600 mm |
14 pallet（80 pcs/pallet） |
28 pallet（90 pcs/pallet） |
|
1800 mm |
12 pallet（80 pcs/pallet） |
24 pallet（90 pcs/pallet） |
|
2000 mm |
10 pallet（80 pcs/pallet） |
22 pallet（90 pcs/pallet） |
