Product Information
- Material: Al6005-T5 or Q235 or Q355
- Design Standard: JIS C8955-2011, AS/NZS 1170.0, IEC62817 etc
- Foundation Type: Driven Pile or Ground Screw or Concrete
- Regulation Mode: The electric drive shaft or the manual pushrod
- Adjustable Angle: 10°-60°
- Module Type: Framed or Frameless
- Panel Layout: Portrait or Landscape
- Service life: 25 years
- Warranty: 20 years (Q235 or Q355) 12 years (Al6005-T5)

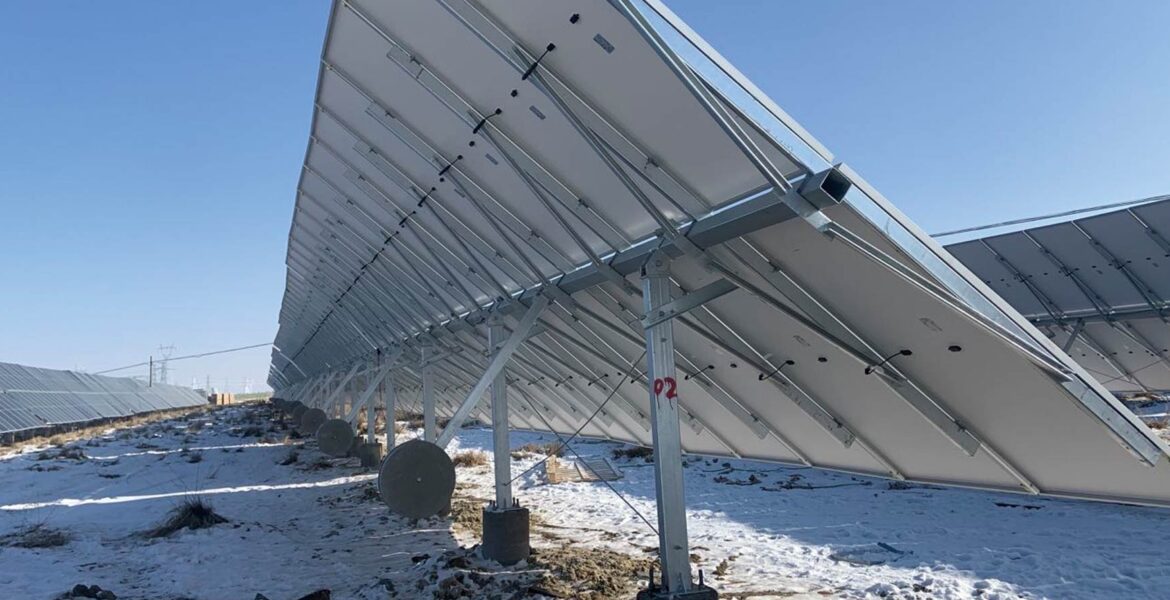

Adjust Ground Solar Panel Structure
The Adjust Grouns Solar Panel Structure is designed for increasing power generaion by angle settings according to season changing. It can achieve different angle cover N-S 10´-60
Advantages
- Tilt angle can be achieved by manually or electric motor
- Triangle structure offer better stability for whole system
- Adjust the angle through the electric drive shaft or the manual pushrod
- Suitable for N-S direction 10° – 60° adjustable
- Compatible for all solar modules
