Project Information
- MPPT Technology MPPT is an advanced charge mode whose full name is Maximum Power Point Tracking function which can increase the energy
- ICD Technology (Intelligent Charge and Discharge) Using Grade A LiFePO4 battery with excellent safety performance. Road Smart's unique current equalization and dual protection

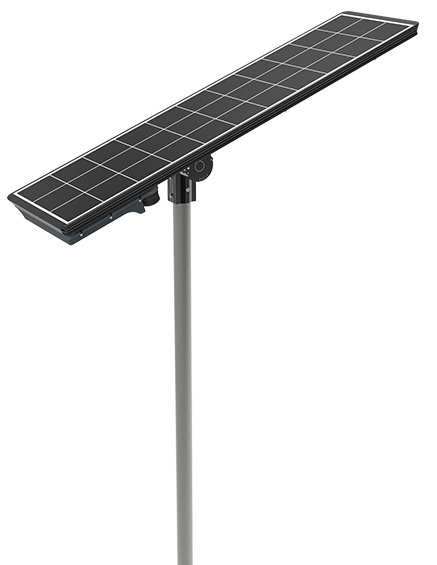

Solar Star Light Pro
| Type |
SP-110
|
SP-160
|
SP-165
|
|
| LIGHT |
Power
|
65W
|
80W
|
100W
|
|
LED chip
|
SMD3030/200pcs
|
|||
|
LED Brand
|
Bridgelux
|
|||
|
IP Rating
|
IP65 | |||
|
Flux @ CCT 5700-6000K
|
10400LM
|
12800LM
|
16000LM
|
|
|
CRI
|
70 / 80
|
|||
|
Beam angle
|
140*60
|
|||
|
Light distribution
|
Bat-wing Type II
|
|||
|
Shell material
|
Aluminum alloy
|
|||
|
Working temperature
|
-20°C to 60°C
|
|||
|
Lifespan
|
50000hrs
|
|||
|
BATTERY
|
Power
|
768WH
|
1152WH
|
1536WH
|
|
Lighting time @ Full power
|
11.82hrs
|
14.4hrs
|
15.36hrs
|
|
|
Lighting time @ Dimming/Power
control
|
3-5days
|
|||
|
Lithium battery
|
LiFePO4
|
|||
|
Charging cycles
|
>2000times
|
|||
|
SOLAR
PANEL
|
Power
|
110W
|
160W
|
160W
|
|
Voltage
|
18V
|
|||
|
Type
|
Monocrystalline silicon
|
|||
|
Efficiency
|
22%
|
|||
|
Lifespan
|
>25years
|
|||
|
CONTROLLER
|
Charging method
|
Multi-peak MPPT
|
||
|
Working modes
|
L / M / T / U
(Compound with photocell sensor, timing, dimming, microwave
sensor, intelligent power control saving)
|
|||
|
Circuit protection
|
High / Low temperature protections
|
|||
|
Short circuit & Open load protections
|
||||
|
Overcharging & Overdischarging protections
|
||||
|
INSTALLATION
|
Top diameter
|
76mm
|
||
|
Height
|
7-8m
|
9-10m
|
11-12m
|
|
|
Spacing
|
30m
|
35m
|
40m
|
|
|
WARRANTY
|
3yeras on all components – option to extend
|
|||
